#include <gui.h>

Collaboration diagram for Skyscraper::GUI:

[legend]

Public Member Functions
	GUI (VM *parent)

	~GUI ()

void	UnregisterDebugPanel ()

void	Unload ()

void	ShowProgress ()

std::string	SelectBuilding (const std::string &data_path)

std::string	SelectBuildingNative (const std::string &data_path)

void	Resize ()

void	CreateDebugPanel ()

void	EnableConsole (bool value)

void	RaiseWindow ()

void	EnableTimer (bool value)

void	ShowConsole (bool send_button=true)

void	ShowProgressDialog ()

void	CreateProgressDialog (const std::string &message)

void	CloseProgressDialog ()

bool	UpdateProgress (int percent)

bool	ProgressCancelled ()

void	ShowError (const std::string &message)

void	ShowMessage (const std::string &message)

void	RefreshConsole ()

void	ShowDebugPanel ()

void	ShowControlReference ()

void	ShowLoadDialog ()

void	WriteToConsole (const std::string &message, const std::string &color="white")

bool	ReportMissingFiles (std::vector< std::string > &missing_files)

bool	IsConsoleVisible ()

Private Attributes
wxProgressDialog *	progdialog

DebugPanel *	dpanel

Console *	console

LoadDialog *	loaddialog

bool	show_progress

std::string	prog_text

VM *	vm

Detailed Description

Definition at line 42 of file gui.h.

Constructor & Destructor Documentation

◆ GUI()

Skyscraper::GUI::GUI ( VM * parent )

Definition at line 43 of file gui.cpp.

References console, dpanel, loaddialog, progdialog, show_progress, and vm.

◆ ~GUI()

Skyscraper::GUI::~GUI ( )

Definition at line 54 of file gui.cpp.

References CloseProgressDialog(), console, loaddialog, progdialog, and Unload().

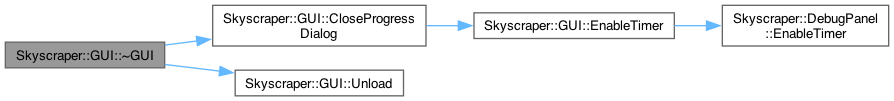

Here is the call graph for this function:

Member Function Documentation

◆ CloseProgressDialog()

void Skyscraper::GUI::CloseProgressDialog ( )

Definition at line 253 of file gui.cpp.

References EnableTimer(), and progdialog.

Referenced by Skyscraper::EngineContext::Run(), and ~GUI().

Here is the call graph for this function:

◆ CreateDebugPanel()

void Skyscraper::GUI::CreateDebugPanel ( )

Definition at line 193 of file gui.cpp.

References Skyscraper::HAL::configfile, dpanel, Skyscraper::HAL::GetConfigInt(), Skyscraper::VM::GetHAL(), Skyscraper::VM::GetParent(), and vm.

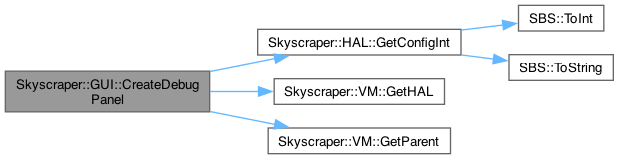

Here is the call graph for this function:

◆ CreateProgressDialog()

void Skyscraper::GUI::CreateProgressDialog ( const std::string & message )

Definition at line 225 of file gui.cpp.

References Skyscraper::VM::ConcurrentLoads, EnableTimer(), Skyscraper::VM::GetEngineCount(), Skyscraper::VM::GetFirstValidEngine(), Skyscraper::EngineContext::IsRunning(), prog_text, progdialog, show_progress, and vm.

Referenced by Skyscraper::EngineContext::Load().

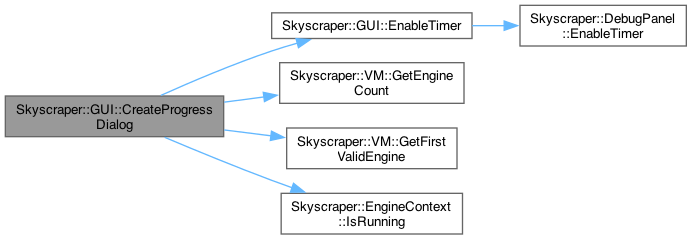

Here is the call graph for this function:

◆ EnableConsole()

void Skyscraper::GUI::EnableConsole ( bool value )

Definition at line 202 of file gui.cpp.

References Skyscraper::Console::bSend, and console.

◆ EnableTimer()

void Skyscraper::GUI::EnableTimer ( bool value )

Definition at line 208 of file gui.cpp.

References dpanel, and Skyscraper::DebugPanel::EnableTimer().

Referenced by CloseProgressDialog(), and CreateProgressDialog().

Here is the call graph for this function:

◆ IsConsoleVisible()

bool Skyscraper::GUI::IsConsoleVisible ( )

Definition at line 374 of file gui.cpp.

References console.

Referenced by Skyscraper::VMConsole::Process(), Skyscraper::VMConsole::Report(), and Skyscraper::VMConsole::VMConsole().

◆ ProgressCancelled()

bool Skyscraper::GUI::ProgressCancelled ( )

Definition at line 283 of file gui.cpp.

References progdialog.

Referenced by Skyscraper::EngineContext::Run().

◆ RaiseWindow()

void Skyscraper::GUI::RaiseWindow ( )

Definition at line 300 of file gui.cpp.

References Skyscraper::VM::GetParent(), and vm.

Referenced by Skyscraper::EngineContext::Run().

Here is the call graph for this function:

◆ RefreshConsole()

void Skyscraper::GUI::RefreshConsole ( )

Definition at line 291 of file gui.cpp.

References console.

Referenced by Skyscraper::EngineContext::StartSim().

◆ ReportMissingFiles()

bool Skyscraper::GUI::ReportMissingFiles ( std::vector< std::string > & missing_files )

Definition at line 339 of file gui.cpp.

References Skyscraper::VM::GetHAL(), Skyscraper::HAL::Report(), Skyscraper::TextWindow::tMain, Skyscraper::twindow, and vm.

Referenced by Skyscraper::VM::ReportMissingFiles().

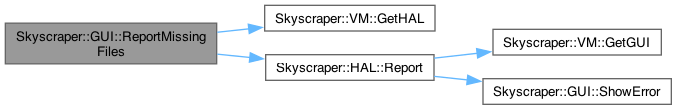

Here is the call graph for this function:

◆ Resize()

void Skyscraper::GUI::Resize ( )

◆ SelectBuilding()

std::string Skyscraper::GUI::SelectBuilding ( const std::string & data_path )

Definition at line 105 of file gui.cpp.

Referenced by Skyscraper::LoadDialog::On_bSelect_Click().

◆ SelectBuildingNative()

std::string Skyscraper::GUI::SelectBuildingNative ( const std::string & data_path )

Definition at line 161 of file gui.cpp.

◆ ShowConsole()

void Skyscraper::GUI::ShowConsole ( bool send_button = true )

Definition at line 214 of file gui.cpp.

References Skyscraper::Console::bSend, Skyscraper::HAL::configfile, console, Skyscraper::HAL::GetConfigInt(), Skyscraper::VM::GetHAL(), Skyscraper::VM::GetParent(), and vm.

Referenced by Skyscraper::HAL::LoadConfiguration(), and Skyscraper::DebugPanel::On_bConsole_Click().

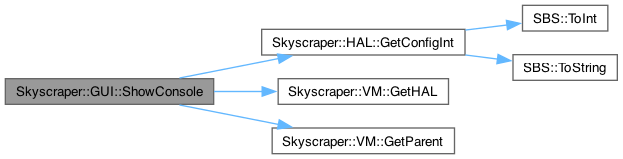

Here is the call graph for this function:

◆ ShowControlReference()

void Skyscraper::GUI::ShowControlReference ( )

Definition at line 317 of file gui.cpp.

References dpanel, and Skyscraper::DebugPanel::ShowControlReference().

Here is the call graph for this function:

◆ ShowDebugPanel()

void Skyscraper::GUI::ShowDebugPanel ( )

Definition at line 306 of file gui.cpp.

References Skyscraper::HAL::configfile, dpanel, Skyscraper::HAL::GetConfigInt(), Skyscraper::VM::GetHAL(), Skyscraper::VM::GetParent(), and vm.

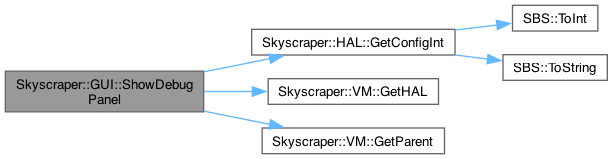

Here is the call graph for this function:

◆ ShowError()

void Skyscraper::GUI::ShowError ( const std::string & message )

Definition at line 84 of file gui.cpp.

Referenced by Skyscraper::HAL::Report(), Skyscraper::HAL::ReportError(), Skyscraper::EngineContext::ReportFatalError(), and Skyscraper::HAL::ReportFatalError().

◆ ShowLoadDialog()

void Skyscraper::GUI::ShowLoadDialog ( )

Definition at line 322 of file gui.cpp.

References dpanel, Skyscraper::VM::GetParent(), loaddialog, and vm.

Here is the call graph for this function:

◆ ShowMessage()

void Skyscraper::GUI::ShowMessage ( const std::string & message )

Definition at line 91 of file gui.cpp.

◆ ShowProgress()

void Skyscraper::GUI::ShowProgress ( )

Definition at line 98 of file gui.cpp.

References show_progress, and ShowProgressDialog().

Here is the call graph for this function:

◆ ShowProgressDialog()

void Skyscraper::GUI::ShowProgressDialog ( )

Definition at line 264 of file gui.cpp.

References Skyscraper::VM::GetParent(), prog_text, progdialog, show_progress, and vm.

Referenced by ShowProgress().

Here is the call graph for this function:

◆ Unload()

void Skyscraper::GUI::Unload ( )

Definition at line 76 of file gui.cpp.

References dpanel.

Referenced by ~GUI().

◆ UnregisterDebugPanel()

void Skyscraper::GUI::UnregisterDebugPanel ( )

inline

Definition at line 47 of file gui.h.

Referenced by Skyscraper::DebugPanel::~DebugPanel().

◆ UpdateProgress()

bool Skyscraper::GUI::UpdateProgress ( int percent )

Definition at line 272 of file gui.cpp.

References progdialog.

Referenced by Skyscraper::VM::UpdateProgress().

◆ WriteToConsole()

void Skyscraper::GUI::WriteToConsole	(	const std::string &	message,
		const std::string &	color = "white" )

Definition at line 330 of file gui.cpp.

References console, and Skyscraper::Console::Write().

Referenced by Skyscraper::HAL::messageLogged(), and Skyscraper::VMConsole::Report().

Here is the call graph for this function:

Member Data Documentation

◆ console

Console* Skyscraper::GUI::console

private

Definition at line 81 of file gui.h.

Referenced by EnableConsole(), GUI(), IsConsoleVisible(), RefreshConsole(), ShowConsole(), WriteToConsole(), and ~GUI().

◆ dpanel

DebugPanel* Skyscraper::GUI::dpanel

private

Definition at line 78 of file gui.h.

Referenced by CreateDebugPanel(), EnableTimer(), GUI(), ShowControlReference(), ShowDebugPanel(), ShowLoadDialog(), and Unload().

◆ loaddialog

LoadDialog* Skyscraper::GUI::loaddialog

private

Definition at line 84 of file gui.h.

Referenced by GUI(), ShowLoadDialog(), and ~GUI().

◆ prog_text

std::string Skyscraper::GUI::prog_text

private

Definition at line 88 of file gui.h.

Referenced by CreateProgressDialog(), and ShowProgressDialog().

◆ progdialog

wxProgressDialog* Skyscraper::GUI::progdialog

private

Definition at line 75 of file gui.h.

Referenced by CloseProgressDialog(), CreateProgressDialog(), GUI(), ProgressCancelled(), ShowProgressDialog(), UpdateProgress(), and ~GUI().

◆ show_progress

bool Skyscraper::GUI::show_progress

private

Definition at line 87 of file gui.h.

Referenced by CreateProgressDialog(), GUI(), ShowProgress(), and ShowProgressDialog().

◆ vm

VM* Skyscraper::GUI::vm

private

Definition at line 90 of file gui.h.

Referenced by CreateDebugPanel(), CreateProgressDialog(), GUI(), RaiseWindow(), ReportMissingFiles(), ShowConsole(), ShowDebugPanel(), ShowLoadDialog(), and ShowProgressDialog().

The documentation for this class was generated from the following files:

src/gui/gui.h
src/gui/gui.cpp
