Skyscraper::WalkwayControl Class Reference

#include <walkwaycontrol.h>

Inheritance diagram for Skyscraper::WalkwayControl:

Collaboration diagram for Skyscraper::WalkwayControl:

Public Member Functions
	WalkwayControl (DebugPanel *parent, wxWindowID id=wxID_ANY)
virtual	~WalkwayControl ()
void	Loop ()

Public Attributes
wxButton *	bOK
wxListBox *	ListBox1
wxSlider *	Slider1
wxStaticText *	StaticText1
wxStaticText *	StaticText2
wxStaticText *	txtRun
wxTextCtrl *	txtName
wxTextCtrl *	txtParent

Static Protected Attributes
static const long	ID_LISTBOX1 = wxNewId()
static const long	ID_STATICTEXT1 = wxNewId()
static const long	ID_txtName = wxNewId()
static const long	ID_STATICTEXT2 = wxNewId()
static const long	ID_txtParent = wxNewId()
static const long	ID_txtRun = wxNewId()
static const long	ID_SLIDER1 = wxNewId()
static const long	ID_bOK = wxNewId()

Private Member Functions
void	On_chkRun_Click (wxCommandEvent &event)
void	On_bOK_Click (wxCommandEvent &event)
void	On_Slider1_Scroll (wxCommandEvent &event)
void	BuildList (bool restore_selection=false)
void	UpdateRunState ()

Private Attributes
SBS::SBS *	Simcore
DebugPanel *	panel
int	lastcount
SBS::MovingWalkway *	walkway

Detailed Description

Definition at line 39 of file walkwaycontrol.h.

Constructor & Destructor Documentation

WalkwayControl()

Skyscraper::WalkwayControl::WalkwayControl	(	DebugPanel *	parent,
		wxWindowID	id = wxID_ANY )

Definition at line 51 of file walkwaycontrol.cpp.

References On_bOK_Click(), and On_Slider1_Scroll().

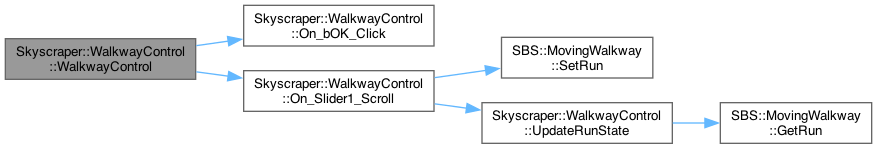

Here is the call graph for this function:

~WalkwayControl()

Skyscraper::WalkwayControl::~WalkwayControl ( )

virtual

Definition at line 102 of file walkwaycontrol.cpp.

Member Function Documentation

BuildList()

void Skyscraper::WalkwayControl::BuildList ( bool restore_selection = false )

private

Definition at line 149 of file walkwaycontrol.cpp.

References SBS::SBS::GetMovingWalkway(), SBS::SBS::GetMovingWalkwayCount(), SBS::ObjectBase::GetName(), lastcount, ListBox1, Simcore, Slider1, SBS::ToString(), txtName, and txtParent.

Referenced by Loop().

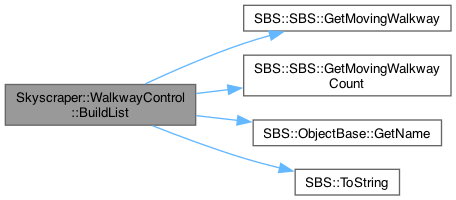

Here is the call graph for this function:

Loop()

void Skyscraper::WalkwayControl::Loop

(

)

Definition at line 113 of file walkwaycontrol.cpp.

References BuildList(), SBS::SBS::GetMovingWalkway(), SBS::ObjectBase::GetName(), SBS::ObjectBase::GetParent(), SBS::MovingWalkway::GetRun(), Skyscraper::DebugPanel::GetSystem(), ListBox1, panel, Simcore, Slider1, txtName, txtParent, UpdateRunState(), and walkway.

Referenced by Skyscraper::DebugPanel::Loop().

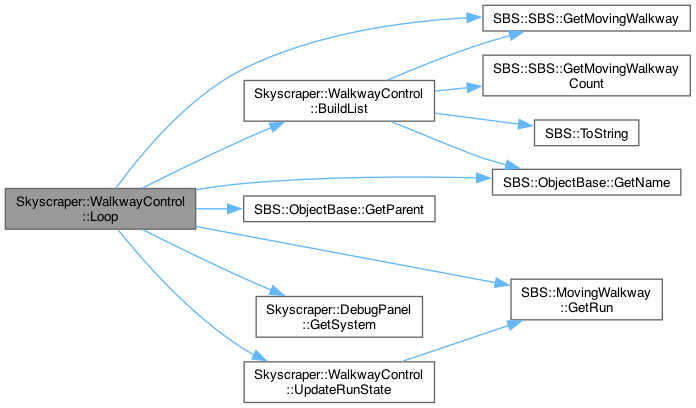

Here is the call graph for this function:

On_bOK_Click()

void Skyscraper::WalkwayControl::On_bOK_Click ( wxCommandEvent & event )

private

Definition at line 108 of file walkwaycontrol.cpp.

Referenced by WalkwayControl().

On_chkRun_Click()

void Skyscraper::WalkwayControl::On_chkRun_Click ( wxCommandEvent & event )

private

On_Slider1_Scroll()

void Skyscraper::WalkwayControl::On_Slider1_Scroll ( wxCommandEvent & event )

private

Definition at line 183 of file walkwaycontrol.cpp.

References SBS::MovingWalkway::SetRun(), Slider1, UpdateRunState(), and walkway.

Referenced by WalkwayControl().

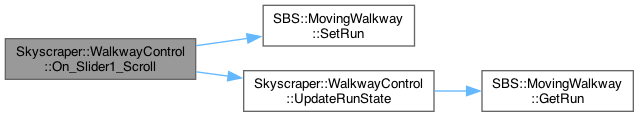

Here is the call graph for this function:

UpdateRunState()

void Skyscraper::WalkwayControl::UpdateRunState ( )

private

Definition at line 190 of file walkwaycontrol.cpp.

References SBS::MovingWalkway::GetRun(), txtRun, and walkway.

Referenced by Loop(), and On_Slider1_Scroll().

Here is the call graph for this function:

Member Data Documentation

bOK

wxButton* Skyscraper::WalkwayControl::bOK

Definition at line 48 of file walkwaycontrol.h.

ID_bOK

const long Skyscraper::WalkwayControl::ID_bOK = wxNewId()

staticprotected

Definition at line 68 of file walkwaycontrol.h.

ID_LISTBOX1

const long Skyscraper::WalkwayControl::ID_LISTBOX1 = wxNewId()

staticprotected

Definition at line 61 of file walkwaycontrol.h.

ID_SLIDER1

const long Skyscraper::WalkwayControl::ID_SLIDER1 = wxNewId()

staticprotected

Definition at line 67 of file walkwaycontrol.h.

ID_STATICTEXT1

const long Skyscraper::WalkwayControl::ID_STATICTEXT1 = wxNewId()

staticprotected

Definition at line 62 of file walkwaycontrol.h.

ID_STATICTEXT2

const long Skyscraper::WalkwayControl::ID_STATICTEXT2 = wxNewId()

staticprotected

Definition at line 64 of file walkwaycontrol.h.

ID_txtName

const long Skyscraper::WalkwayControl::ID_txtName = wxNewId()

staticprotected

Definition at line 63 of file walkwaycontrol.h.

ID_txtParent

const long Skyscraper::WalkwayControl::ID_txtParent = wxNewId()

staticprotected

Definition at line 65 of file walkwaycontrol.h.

ID_txtRun

const long Skyscraper::WalkwayControl::ID_txtRun = wxNewId()

staticprotected

Definition at line 66 of file walkwaycontrol.h.

lastcount

int Skyscraper::WalkwayControl::lastcount

private

Definition at line 83 of file walkwaycontrol.h.

Referenced by BuildList().

ListBox1

wxListBox* Skyscraper::WalkwayControl::ListBox1

Definition at line 49 of file walkwaycontrol.h.

Referenced by BuildList(), and Loop().

panel

DebugPanel* Skyscraper::WalkwayControl::panel

private

Definition at line 82 of file walkwaycontrol.h.

Referenced by Loop().

Simcore

SBS::SBS* Skyscraper::WalkwayControl::Simcore

private

Definition at line 81 of file walkwaycontrol.h.

Referenced by BuildList(), and Loop().

Slider1

wxSlider* Skyscraper::WalkwayControl::Slider1

Definition at line 50 of file walkwaycontrol.h.

Referenced by BuildList(), Loop(), and On_Slider1_Scroll().

StaticText1

wxStaticText* Skyscraper::WalkwayControl::StaticText1

Definition at line 51 of file walkwaycontrol.h.

StaticText2

wxStaticText* Skyscraper::WalkwayControl::StaticText2

Definition at line 52 of file walkwaycontrol.h.

txtName

wxTextCtrl* Skyscraper::WalkwayControl::txtName

Definition at line 54 of file walkwaycontrol.h.

Referenced by BuildList(), and Loop().

txtParent

wxTextCtrl* Skyscraper::WalkwayControl::txtParent

Definition at line 55 of file walkwaycontrol.h.

Referenced by BuildList(), and Loop().

txtRun

wxStaticText* Skyscraper::WalkwayControl::txtRun

Definition at line 53 of file walkwaycontrol.h.

Referenced by UpdateRunState().

walkway

SBS::MovingWalkway* Skyscraper::WalkwayControl::walkway

private

Definition at line 84 of file walkwaycontrol.h.

Referenced by Loop(), On_Slider1_Scroll(), and UpdateRunState().

---

The documentation for this class was generated from the following files:

• src/gui/walkwaycontrol.h
• src/gui/walkwaycontrol.cpp
