xr Namespace Reference

The xr::DispatchTable struct contains all available PFN pointers to xr functions including those in all extensions. The application should call dispatchTable.Initialize() once creating a new XrInstance to initialize all function pointers. The application should reset the dispatch table by = {} when destroying the instance handle. More...

Namespaces
namespace	detail
namespace	math
namespace	Side
namespace	StereoView
namespace	su

Classes
class	ActionHandle
class	ActionSetHandle
struct	DispatchTable
struct	ExtensionContext
class	HandTrackerHandle
class	InstanceHandle
struct	NameVersion
struct	SceneBounds
class	SceneHandle
class	SceneObserverHandle
class	SessionHandle
class	SpaceHandle
class	SpatialAnchorHandle
class	SpatialGraphNodeBindingHandle
class	SwapchainHandle
struct	TypedUuid
class	UniqueXrHandle
struct	ViewConfigurationState
struct	ViewProperties

Typedefs
typedef uint32_t	side_t

Functions
template<typename TArray , typename TValue >
bool	Contains (const TArray &array, const TValue &value)
std::vector< XrExtensionProperties >	EnumerateInstanceExtensionProperties (const char *layerName=nullptr)
std::vector< XrViewConfigurationType >	EnumerateViewConfigurations (XrInstance instance, XrSystemId systemId)
std::vector< XrViewConfigurationView >	EnumerateViewConfigurationViews (XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigurationType)
std::vector< XrEnvironmentBlendMode >	EnumerateEnvironmentBlendModes (XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigType)
XrEnvironmentBlendMode	PickEnvironmentBlendMode (const std::vector< XrEnvironmentBlendMode > &systemSupportedBlendModes, const std::vector< XrEnvironmentBlendMode > &appSupportedBlendModes)
std::vector< int64_t >	EnumerateSwapchainFormats (XrSession session)
template<typename TSystemPixelFormat , typename TAppPixelFormat >
TAppPixelFormat	PickSwapchainFormat (const std::vector< TSystemPixelFormat > &systemSupportedFormats, const std::vector< TAppPixelFormat > &appSupportedFormats)
std::vector< XrReferenceSpaceType >	EnumerateReferenceSpaceTypes (XrSession session)
std::set< std::string >	QueryActionLocalizedName (XrSession session, XrAction action, XrInputSourceLocalizedNameFlags flags)
ExtensionContext	CreateExtensionContext (const std::vector< const char * > &requestedExtensions)
std::vector< XrSceneComputeFeatureMSFT >	EnumerateSceneComputeFeatures (XrInstance instance, XrSystemId systemId)
xr::SceneObserverHandle	CreateSceneObserver (XrSession session)
xr::SceneHandle	CreateScene (XrSceneObserverMSFT sceneObserver)
void	ComputeNewScene (XrSceneObserverMSFT sceneObserver, const std::vector< XrSceneComputeFeatureMSFT > &requestedFeatures, const SceneBounds &bounds, XrSceneComputeConsistencyMSFT consistency=XR_SCENE_COMPUTE_CONSISTENCY_SNAPSHOT_COMPLETE_MSFT, std::optional< XrMeshComputeLodMSFT > visualMeshLevelOfDetail={})
void	ReadMeshBuffers (XrSceneMSFT scene, uint64_t meshBufferId, std::vector< XrVector3f > &vertexBuffer, std::vector< uint32_t > &indexBuffer)
void	ReadMeshBuffers (XrSceneMSFT scene, uint64_t meshBufferId, std::vector< XrVector3f > &vertexBuffer, std::vector< uint16_t > &indexBuffer)
XrPath	StringToPath (XrInstance instance, const char *str)
std::string	PathToString (XrInstance instance, XrPath path)
std::vector< XrPath >	StringsToPaths (XrInstance instance, const std::vector< std::string > &strings)
void	SetApplicationInfo (XrApplicationInfo &appInfo, const xr::NameVersion &appNameVersion, const xr::NameVersion &engineNameVersion, XrVersion apiVersion=XR_CURRENT_API_VERSION)
template<typename T >
void	SetEnabledExtensions (XrInstanceCreateInfo &info, T &extensions)
template<typename T >
void	SetEnabledExtensions (XrInstanceCreateInfo &info, T &&extensions)=delete
template<typename XrStruct , typename XrExtension >
void	InsertExtensionStruct (XrStruct &xrStruct, XrExtension &xrExtension)
template<typename XrEventData >
const XrEventData *	event_cast (const XrEventDataBuffer *eventData)=delete
	DEFINE_EVENT_TYPE (XrEventDataEventsLost, XR_TYPE_EVENT_DATA_EVENTS_LOST)
	DEFINE_EVENT_TYPE (XrEventDataInteractionProfileChanged, XR_TYPE_EVENT_DATA_INTERACTION_PROFILE_CHANGED)
	DEFINE_EVENT_TYPE (XrEventDataInstanceLossPending, XR_TYPE_EVENT_DATA_INSTANCE_LOSS_PENDING)
	DEFINE_EVENT_TYPE (XrEventDataReferenceSpaceChangePending, XR_TYPE_EVENT_DATA_REFERENCE_SPACE_CHANGE_PENDING)
	DEFINE_EVENT_TYPE (XrEventDataPerfSettingsEXT, XR_TYPE_EVENT_DATA_PERF_SETTINGS_EXT)
	DEFINE_EVENT_TYPE (XrEventDataSessionStateChanged, XR_TYPE_EVENT_DATA_SESSION_STATE_CHANGED)
	DEFINE_EVENT_TYPE (XrEventDataVisibilityMaskChangedKHR, XR_TYPE_EVENT_DATA_VISIBILITY_MASK_CHANGED_KHR)
	MAKE_TO_STRING_FUNCS (XrReferenceSpaceType)
	MAKE_TO_STRING_FUNCS (XrViewConfigurationType)
	MAKE_TO_STRING_FUNCS (XrEnvironmentBlendMode)
	MAKE_TO_STRING_FUNCS (XrSessionState)
	MAKE_TO_STRING_FUNCS (XrResult)
	MAKE_TO_STRING_FUNCS (XrStructureType)
	MAKE_TO_STRING_FUNCS (XrFormFactor)
	MAKE_TO_STRING_FUNCS (XrEyeVisibility)
	MAKE_TO_STRING_FUNCS (XrObjectType)
	MAKE_TO_STRING_FUNCS (XrActionType)
	MAKE_TO_STRING_FUNCS (XrHandEXT)
	MAKE_TO_STRING_FUNCS (XrHandPoseTypeMSFT)
	MAKE_TO_CSTRING_FUNC (XrHandJointEXT)
	MAKE_TO_STRING_FUNCS (XrVisibilityMaskTypeKHR)
	MAKE_TO_STRING_FUNCS (XrReprojectionModeMSFT)
	MAKE_TO_STRING_FUNCS (XrSceneComponentTypeMSFT)
	MAKE_TO_STRING_FUNCS (XrSceneComputeStateMSFT)
	MAKE_TO_STRING_FUNCS (XrSceneComputeFeatureMSFT)
	MAKE_TO_STRING_FUNCS (XrSpatialGraphNodeTypeMSFT)
	MAKE_TO_STRING_FUNCS (XrSceneComputeConsistencyMSFT)
	MAKE_TO_STRING_FUNCS (XrMeshComputeLodMSFT)
constexpr bool	IsPrimaryViewConfigurationType (XrViewConfigurationType type)
ViewProperties	CreateViewProperties (XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigurationType, const std::vector< XrEnvironmentBlendMode > &appSupportedEnvironmentBlendModes)
ViewConfigurationState	CreateViewConfigurationState (XrViewConfigurationType viewConfigurationType, XrInstance instance, XrSystemId systemId)
bool	IsRecommendedSwapchainSizeChanged (const std::vector< XrViewConfigurationView > &oldConfigs, const std::vector< XrViewConfigurationView > &newConfigs)

Detailed Description

The xr::DispatchTable struct contains all available PFN pointers to xr functions including those in all extensions. The application should call dispatchTable.Initialize() once creating a new XrInstance to initialize all function pointers. The application should reset the dispatch table by = {} when destroying the instance handle.

#define ENABLE_GLOBAL_XR_DISPATCH_TABLE before #include "XrDispatchTable.h" will add the xrFunctions to the global namespace, so that the application can simply call xr functions as if they are normal C functions. Extension functions can also be used as C functions, e.g. xrCreateSpatialAnchorMSFT();

Typedef Documentation

side_t

typedef uint32_t xr::side_t

Definition at line 8 of file XrSide.h.

Function Documentation

ComputeNewScene()

void xr::ComputeNewScene ( XrSceneObserverMSFT sceneObserver, const std::vector< XrSceneComputeFeatureMSFT > & requestedFeatures, const SceneBounds & bounds, XrSceneComputeConsistencyMSFT consistency = XR_SCENE_COMPUTE_CONSISTENCY_SNAPSHOT_COMPLETE_MSFT, std::optional< XrMeshComputeLodMSFT > visualMeshLevelOfDetail = {} )

inline

Definition at line 48 of file XrSceneUnderstanding.h.

Contains()

template<typename TArray , typename TValue >

bool xr::Contains ( const TArray & array, const TValue & value )

inline

Definition at line 13 of file XrEnumerate.h.

CreateExtensionContext()

ExtensionContext xr::CreateExtensionContext ( const std::vector< const char * > & requestedExtensions )

inline

Definition at line 43 of file XrExtensionContext.h.

References xr::ExtensionContext::EnabledExtensions, and EnumerateInstanceExtensionProperties().

Here is the call graph for this function:

CreateScene()

xr::SceneHandle xr::CreateScene ( XrSceneObserverMSFT sceneObserver )

inline

Definition at line 31 of file XrSceneUnderstanding.h.

References CHECK_XRCMD, and xr::UniqueXrHandle< HandleType >::Put().

Here is the call graph for this function:

CreateSceneObserver()

xr::SceneObserverHandle xr::CreateSceneObserver ( XrSession session )

inline

Definition at line 24 of file XrSceneUnderstanding.h.

References CHECK_XRCMD, and xr::UniqueXrHandle< HandleType >::Put().

Here is the call graph for this function:

CreateViewConfigurationState()

ViewConfigurationState xr::CreateViewConfigurationState ( XrViewConfigurationType viewConfigurationType, XrInstance instance, XrSystemId systemId )

inline

Definition at line 44 of file XrViewConfiguration.h.

References EnumerateViewConfigurationViews(), and xr::ViewConfigurationState::Type.

Here is the call graph for this function:

CreateViewProperties()

ViewProperties xr::CreateViewProperties ( XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigurationType, const std::vector< XrEnvironmentBlendMode > & appSupportedEnvironmentBlendModes )

inline

Definition at line 28 of file XrViewConfiguration.h.

References CHECK_XRCMD, EnumerateEnvironmentBlendModes(), PickEnvironmentBlendMode(), and xr::ViewProperties::Type.

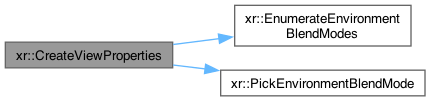

Here is the call graph for this function:

DEFINE_EVENT_TYPE() [1/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataEventsLost	,
		XR_TYPE_EVENT_DATA_EVENTS_LOST	)

DEFINE_EVENT_TYPE() [2/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataInstanceLossPending	,
		XR_TYPE_EVENT_DATA_INSTANCE_LOSS_PENDING	)

DEFINE_EVENT_TYPE() [3/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataInteractionProfileChanged	,
		XR_TYPE_EVENT_DATA_INTERACTION_PROFILE_CHANGED	)

DEFINE_EVENT_TYPE() [4/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataPerfSettingsEXT	,
		XR_TYPE_EVENT_DATA_PERF_SETTINGS_EXT	)

DEFINE_EVENT_TYPE() [5/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataReferenceSpaceChangePending	,
		XR_TYPE_EVENT_DATA_REFERENCE_SPACE_CHANGE_PENDING	)

DEFINE_EVENT_TYPE() [6/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataSessionStateChanged	,
		XR_TYPE_EVENT_DATA_SESSION_STATE_CHANGED	)

DEFINE_EVENT_TYPE() [7/7]

xr::DEFINE_EVENT_TYPE	(	XrEventDataVisibilityMaskChangedKHR	,
		XR_TYPE_EVENT_DATA_VISIBILITY_MASK_CHANGED_KHR	)

EnumerateEnvironmentBlendModes()

std::vector< XrEnvironmentBlendMode > xr::EnumerateEnvironmentBlendModes ( XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigType )

inline

Definition at line 48 of file XrEnumerate.h.

References CHECK_XRCMD.

Referenced by CreateViewProperties().

EnumerateInstanceExtensionProperties()

std::vector< XrExtensionProperties > xr::EnumerateInstanceExtensionProperties ( const char * layerName = nullptr )

inline

Definition at line 17 of file XrEnumerate.h.

References CHECK_XRCMD.

Referenced by CreateExtensionContext().

EnumerateReferenceSpaceTypes()

std::vector< XrReferenceSpaceType > xr::EnumerateReferenceSpaceTypes ( XrSession session )

inline

Definition at line 99 of file XrEnumerate.h.

References CHECK_XRCMD.

EnumerateSceneComputeFeatures()

std::vector< XrSceneComputeFeatureMSFT > xr::EnumerateSceneComputeFeatures ( XrInstance instance, XrSystemId systemId )

inline

Definition at line 14 of file XrSceneUnderstanding.h.

References CHECK_XRCMD.

EnumerateSwapchainFormats()

std::vector< int64_t > xr::EnumerateSwapchainFormats ( XrSession session )

inline

Definition at line 75 of file XrEnumerate.h.

References CHECK_XRCMD.

EnumerateViewConfigurations()

std::vector< XrViewConfigurationType > xr::EnumerateViewConfigurations ( XrInstance instance, XrSystemId systemId )

inline

Definition at line 26 of file XrEnumerate.h.

References CHECK_XRCMD.

EnumerateViewConfigurationViews()

std::vector< XrViewConfigurationView > xr::EnumerateViewConfigurationViews ( XrInstance instance, XrSystemId systemId, XrViewConfigurationType viewConfigurationType )

inline

Definition at line 35 of file XrEnumerate.h.

References CHECK_XRCMD.

Referenced by CreateViewConfigurationState().

event_cast()

template<typename XrEventData >

const XrEventData * xr::event_cast ( const XrEventDataBuffer * eventData )

delete

InsertExtensionStruct()

template<typename XrStruct , typename XrExtension >

void xr::InsertExtensionStruct	(	XrStruct &	xrStruct,
		XrExtension &	xrExtension )

Definition at line 43 of file XrStruct.h.

Referenced by ReadMeshBuffers(), and ReadMeshBuffers().

IsPrimaryViewConfigurationType()

bool xr::IsPrimaryViewConfigurationType ( XrViewConfigurationType type )

constexpr

Definition at line 23 of file XrViewConfiguration.h.

IsRecommendedSwapchainSizeChanged()

bool xr::IsRecommendedSwapchainSizeChanged ( const std::vector< XrViewConfigurationView > & oldConfigs, const std::vector< XrViewConfigurationView > & newConfigs )

inline

Definition at line 55 of file XrViewConfiguration.h.

MAKE_TO_CSTRING_FUNC()

xr::MAKE_TO_CSTRING_FUNC

(

XrHandJointEXT

)

MAKE_TO_STRING_FUNCS() [1/20]

xr::MAKE_TO_STRING_FUNCS

(

XrActionType

)

MAKE_TO_STRING_FUNCS() [2/20]

xr::MAKE_TO_STRING_FUNCS

(

XrEnvironmentBlendMode

)

MAKE_TO_STRING_FUNCS() [3/20]

xr::MAKE_TO_STRING_FUNCS

(

XrEyeVisibility

)

MAKE_TO_STRING_FUNCS() [4/20]

xr::MAKE_TO_STRING_FUNCS

(

XrFormFactor

)

MAKE_TO_STRING_FUNCS() [5/20]

xr::MAKE_TO_STRING_FUNCS

(

XrHandEXT

)

MAKE_TO_STRING_FUNCS() [6/20]

xr::MAKE_TO_STRING_FUNCS

(

XrHandPoseTypeMSFT

)

MAKE_TO_STRING_FUNCS() [7/20]

xr::MAKE_TO_STRING_FUNCS

(

XrMeshComputeLodMSFT

)

MAKE_TO_STRING_FUNCS() [8/20]

xr::MAKE_TO_STRING_FUNCS

(

XrObjectType

)

MAKE_TO_STRING_FUNCS() [9/20]

xr::MAKE_TO_STRING_FUNCS

(

XrReferenceSpaceType

)

MAKE_TO_STRING_FUNCS() [10/20]

xr::MAKE_TO_STRING_FUNCS

(

XrReprojectionModeMSFT

)

MAKE_TO_STRING_FUNCS() [11/20]

xr::MAKE_TO_STRING_FUNCS

(

XrResult

)

MAKE_TO_STRING_FUNCS() [12/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSceneComponentTypeMSFT

)

MAKE_TO_STRING_FUNCS() [13/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSceneComputeConsistencyMSFT

)

MAKE_TO_STRING_FUNCS() [14/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSceneComputeFeatureMSFT

)

MAKE_TO_STRING_FUNCS() [15/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSceneComputeStateMSFT

)

MAKE_TO_STRING_FUNCS() [16/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSessionState

)

MAKE_TO_STRING_FUNCS() [17/20]

xr::MAKE_TO_STRING_FUNCS

(

XrSpatialGraphNodeTypeMSFT

)

MAKE_TO_STRING_FUNCS() [18/20]

xr::MAKE_TO_STRING_FUNCS

(

XrStructureType

)

MAKE_TO_STRING_FUNCS() [19/20]

xr::MAKE_TO_STRING_FUNCS

(

XrViewConfigurationType

)

MAKE_TO_STRING_FUNCS() [20/20]

xr::MAKE_TO_STRING_FUNCS

(

XrVisibilityMaskTypeKHR

)

PathToString()

std::string xr::PathToString ( XrInstance instance, XrPath path )

inline

Definition at line 25 of file XrString.h.

References CHECK_XRCMD.

PickEnvironmentBlendMode()

XrEnvironmentBlendMode xr::PickEnvironmentBlendMode ( const std::vector< XrEnvironmentBlendMode > & systemSupportedBlendModes, const std::vector< XrEnvironmentBlendMode > & appSupportedBlendModes )

inline

Definition at line 62 of file XrEnumerate.h.

Referenced by CreateViewProperties().

PickSwapchainFormat()

template<typename TSystemPixelFormat , typename TAppPixelFormat >

TAppPixelFormat xr::PickSwapchainFormat ( const std::vector< TSystemPixelFormat > & systemSupportedFormats, const std::vector< TAppPixelFormat > & appSupportedFormats )

inline

Definition at line 86 of file XrEnumerate.h.

QueryActionLocalizedName()

std::set< std::string > xr::QueryActionLocalizedName ( XrSession session, XrAction action, XrInputSourceLocalizedNameFlags flags )

inline

Definition at line 109 of file XrEnumerate.h.

References CHECK_XRCMD.

ReadMeshBuffers() [1/2]

void xr::ReadMeshBuffers ( XrSceneMSFT scene, uint64_t meshBufferId, std::vector< XrVector3f > & vertexBuffer, std::vector< uint16_t > & indexBuffer )

inline

Definition at line 100 of file XrSceneUnderstanding.h.

References CHECK_XRCMD, and InsertExtensionStruct().

Here is the call graph for this function:

ReadMeshBuffers() [2/2]

void xr::ReadMeshBuffers ( XrSceneMSFT scene, uint64_t meshBufferId, std::vector< XrVector3f > & vertexBuffer, std::vector< uint32_t > & indexBuffer )

inline

Definition at line 76 of file XrSceneUnderstanding.h.

References CHECK_XRCMD, and InsertExtensionStruct().

Here is the call graph for this function:

SetApplicationInfo()

void xr::SetApplicationInfo ( XrApplicationInfo & appInfo, const xr::NameVersion & appNameVersion, const xr::NameVersion & engineNameVersion, XrVersion apiVersion = XR_CURRENT_API_VERSION )

inline

Definition at line 18 of file XrStruct.h.

References xr::NameVersion::Name, and xr::NameVersion::Version.

SetEnabledExtensions() [1/2]

template<typename T >

void xr::SetEnabledExtensions ( XrInstanceCreateInfo & info, T && extensions )

delete

SetEnabledExtensions() [2/2]

template<typename T >

void xr::SetEnabledExtensions	(	XrInstanceCreateInfo &	info,
		T &	extensions )

Definition at line 31 of file XrStruct.h.

StringsToPaths()

std::vector< XrPath > xr::StringsToPaths ( XrInstance instance, const std::vector< std::string > & strings )

inline

Definition at line 36 of file XrString.h.

References StringToPath().

Here is the call graph for this function:

StringToPath()

XrPath xr::StringToPath ( XrInstance instance, const char * str )

inline

Definition at line 19 of file XrString.h.

References CHECK_XRCMD.

Referenced by StringsToPaths().
