#include <buttonpanel.h>

Inheritance diagram for SBS::ButtonPanel:

[legend]

Collaboration diagram for SBS::ButtonPanel:

[legend]

Public Member Functions
	ButtonPanel (Object *parent, int index, const std::string &texture, int rows, int columns, const std::string &direction, Real CenterX, Real CenterZ, Real buttonwidth, Real buttonheight, Real spacingX, Real spacingY, Real voffset, Real tw, Real th, bool autosize=true)

	~ButtonPanel ()

Control *	AddButton (const std::string &sound, const std::string &texture, const std::string &texture_lit, int row, int column, const std::string &type, Real width, Real height, Real hoffset=0, Real voffset=0)

Control *	AddControl (const std::string &sound, int row, int column, Real bwidth, Real bheight, Real hoffset, Real voffset, int selection_position, std::vector< std::string > &action_names, std::vector< std::string > &textures)

void	Enabled (bool value)

bool	IsEnabled ()

bool	AddWall (const std::string &name, const std::string &texture, Real thickness, Real x1, Real z1, Real x2, Real z2, Real height1, Real height2, Real voffset1, Real voffset2, Real tw, Real th, bool autosize)

void	ChangeLight (int floor, bool value)

void	ChangeAllLights (bool value)

Control *	GetFloorButton (int floor)

Control *	GetControl (int index)

Control *	GetControl (const std::string &name)

void	RemoveControl (Control *control)

int	GetControlCount ()

void	SetControls (const std::string &action_name)

Public Member Functions inherited from SBS::Object
	Object (Object *parent)

virtual	~Object ()

void	SetValues (const std::string &type, const std::string &name, bool is_permanent, bool is_movable=true)

bool	IsPermanent ()

bool	IsMovable ()

const std::string &	GetType ()

int	GetNumber ()

void	AddChild (Object *object)

Object *	GetChild (int index)

int	GetChildrenCount ()

void	RemoveChild (Object *object)

SceneNode *	GetSceneNode ()

void	ShowBoundingBox (bool value)

virtual void	Move (const Vector3 &vector, Real speed=1.0, bool force=false)

virtual void	Move (Real X, Real Y, Real Z, Real speed=1.0, bool force=false)

virtual void	SetPosition (const Vector3 &position, bool relative=false, bool force=false)

virtual void	SetPosition (Real X, Real Y, Real Z, bool relative=false, bool force=false)

virtual void	SetPositionY (Real value, bool force=false)

virtual Vector3	GetPosition (bool relative=false)

virtual void	Rotate (const Vector3 &vector, Real speed=1.0)

virtual void	Rotate (Real X, Real Y, Real Z, Real speed=1.0)

virtual void	SetRotation (const Vector3 &rotation)

virtual void	SetRotation (Real X, Real Y, Real Z)

virtual Vector3	GetRotation ()

Quaternion	GetOrientation (bool relative=false)

void	SetOrientation (const Quaternion &q, bool relative=false)

virtual void	OnMove (bool parent)

virtual void	OnRotate (bool parent)

virtual void	OnClick (Vector3 &position, bool shift, bool ctrl, bool alt, bool right)

virtual void	OnUnclick (bool right)

virtual void	OnHit ()

void	NotifyMove (bool parent=false)

void	NotifyRotate (bool parent=false)

virtual void	ResetState ()

void	ChangeParent (Object *new_parent)

bool	IsGlobal ()

void	Init (bool children=true)

virtual void	OnInit ()

virtual void	Loop ()

void	RegisterLoop (Object *object)

void	UnregisterLoop (Object *object)

std::string	GetNameBase ()

template<typename T >
bool	IsType ()

template<typename T >
T *	ConvertTo ()

Public Member Functions inherited from SBS::ObjectBase
	ObjectBase (Object *parent)

virtual	~ObjectBase ()

Object *	GetParent ()

SBS *	GetRoot ()

void	SetName (const std::string &name)

const std::string &	GetName ()

std::string	GetNameBase ()

virtual void	Report (const std::string &message)

virtual bool	ReportError (const std::string &message)

Public Attributes
int	Index

std::string	Direction

Real	Width

Real	Height

Real	ButtonWidth

Real	ButtonHeight

Real	SpacingX

Real	SpacingY

int	Rows

int	Columns

bool	is_enabled

Public Attributes inherited from SBS::Object
std::string	command

std::string	command_processed

std::string	context

int	linenum

std::string	includefile

bool	parent_deleting

Private Attributes
MeshObject *	mesh

Action *	off_action

std::vector< Control * >	controls

std::vector< Action * >	action_list

Additional Inherited Members
Protected Member Functions inherited from SBS::Object
void	EnableLoop (bool value)

void	LoopChildren ()

bool	SelfDestruct ()

Protected Attributes inherited from SBS::ObjectBase
SBS *	sbs

Detailed Description

Definition at line 29 of file buttonpanel.h.

Constructor & Destructor Documentation

◆ ButtonPanel()

SBS::ButtonPanel::ButtonPanel	(	Object *	parent,
		int	index,
		const std::string &	texture,
		int	rows,
		int	columns,
		const std::string &	direction,
		Real	CenterX,
		Real	CenterZ,
		Real	buttonwidth,
		Real	buttonheight,
		Real	spacingX,
		Real	spacingY,
		Real	voffset,
		Real	tw,
		Real	th,
		bool	autosize = true )

Definition at line 36 of file buttonpanel.cpp.

References AddWall(), ButtonHeight, ButtonWidth, Columns, Direction, SBS::SBS::DrawWalls(), SBS::SBS::GetConfigFloat(), SBS::SBS::GetTextureManager(), Height, Index, is_enabled, mesh, SBS::Object::Move(), off_action, SBS::TextureManager::ResetTextureMapping(), SBS::SBS::ResetWalls(), Rows, SBS::ObjectBase::sbs, SBS::SetCase(), SBS::ObjectBase::SetName(), SBS::Object::SetValues(), SpacingX, SpacingY, SBS::ToString(), SBS::TrimString(), and Width.

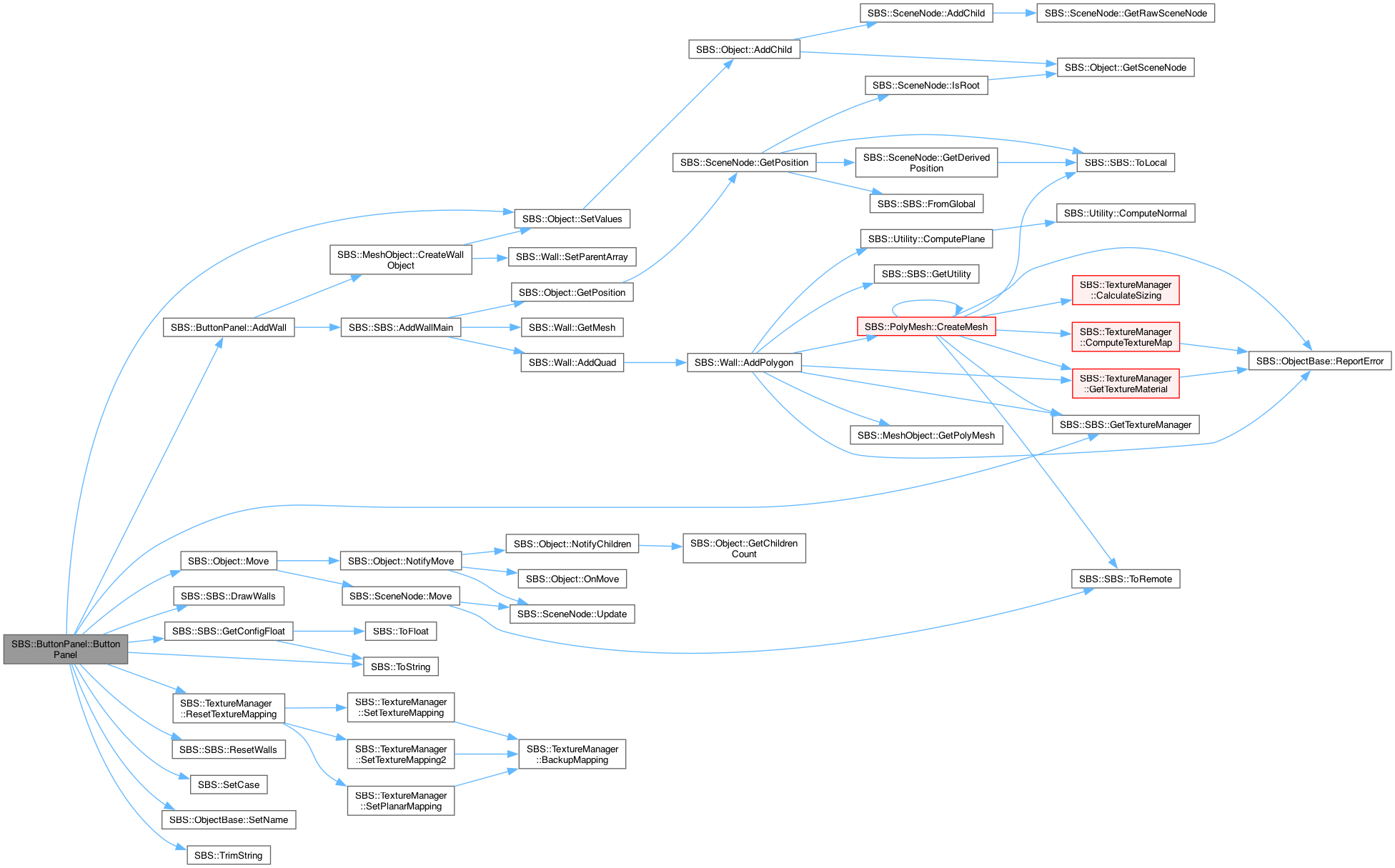

Here is the call graph for this function:

◆ ~ButtonPanel()

SBS::ButtonPanel::~ButtonPanel ( )

Definition at line 99 of file buttonpanel.cpp.

References action_list, controls, SBS::SBS::FastDelete, SBS::ObjectBase::GetParent(), SBS::Object::GetType(), mesh, SBS::Object::parent_deleting, SBS::SBS::RemoveAction(), and SBS::ObjectBase::sbs.

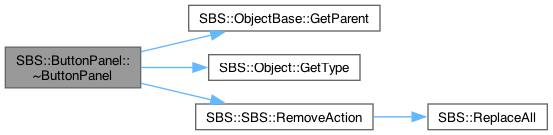

Here is the call graph for this function:

Member Function Documentation

◆ AddButton()

Control * SBS::ButtonPanel::AddButton	(	const std::string &	sound,
		const std::string &	texture,
		const std::string &	texture_lit,
		int	row,
		int	column,
		const std::string &	type,
		Real	width,
		Real	height,
		Real	hoffset = 0,
		Real	voffset = 0 )

Definition at line 139 of file buttonpanel.cpp.

References AddControl(), SBS::TextureManager::EnableLighting(), SBS::SBS::GetTextureManager(), SBS::IsNumeric(), SBS::ObjectBase::sbs, and SBS::SetCase().

Referenced by Skyscraper::ScriptProcessor::ElevatorCarSection::Run().

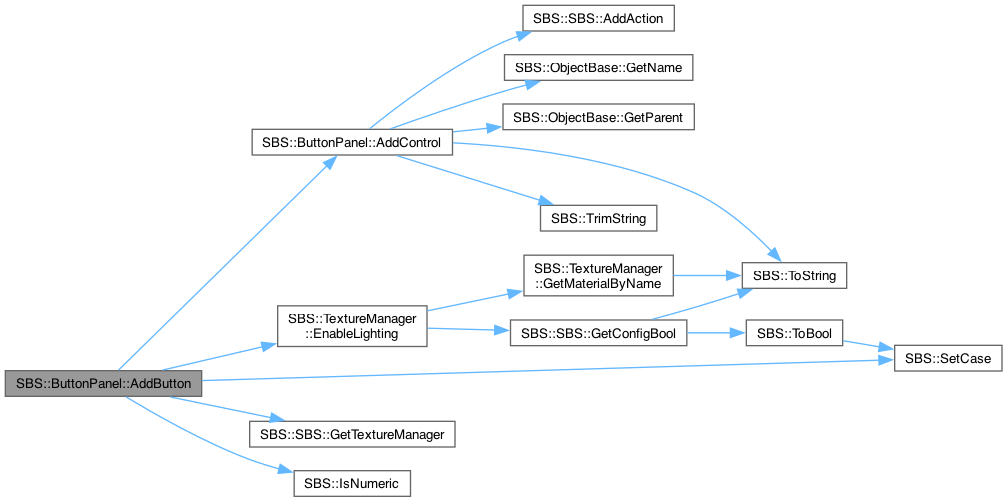

Here is the call graph for this function:

◆ AddControl()

Control * SBS::ButtonPanel::AddControl	(	const std::string &	sound,
		int	row,
		int	column,
		Real	bwidth,
		Real	bheight,
		Real	hoffset,
		Real	voffset,
		int	selection_position,
		std::vector< std::string > &	action_names,
		std::vector< std::string > &	textures )

Definition at line 170 of file buttonpanel.cpp.

References action_list, SBS::SBS::AddAction(), ButtonHeight, ButtonWidth, controls, Direction, SBS::ObjectBase::GetName(), SBS::ObjectBase::GetParent(), Height, off_action, SBS::ObjectBase::sbs, SpacingX, SpacingY, SBS::ToString(), SBS::TrimString(), and Width.

Referenced by AddButton(), SBS::CallStation::CreateCallButtons(), and Skyscraper::ScriptProcessor::CallStationSection::Run().

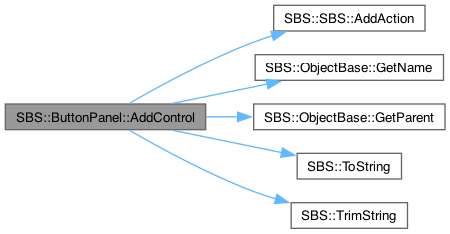

Here is the call graph for this function:

◆ AddWall()

bool SBS::ButtonPanel::AddWall	(	const std::string &	name,
		const std::string &	texture,
		Real	thickness,
		Real	x1,
		Real	z1,
		Real	x2,
		Real	z2,
		Real	height1,
		Real	height2,
		Real	voffset1,
		Real	voffset2,
		Real	tw,
		Real	th,
		bool	autosize )

Definition at line 274 of file buttonpanel.cpp.

References SBS::SBS::AddWallMain(), SBS::MeshObject::CreateWallObject(), mesh, and SBS::ObjectBase::sbs.

Referenced by ButtonPanel().

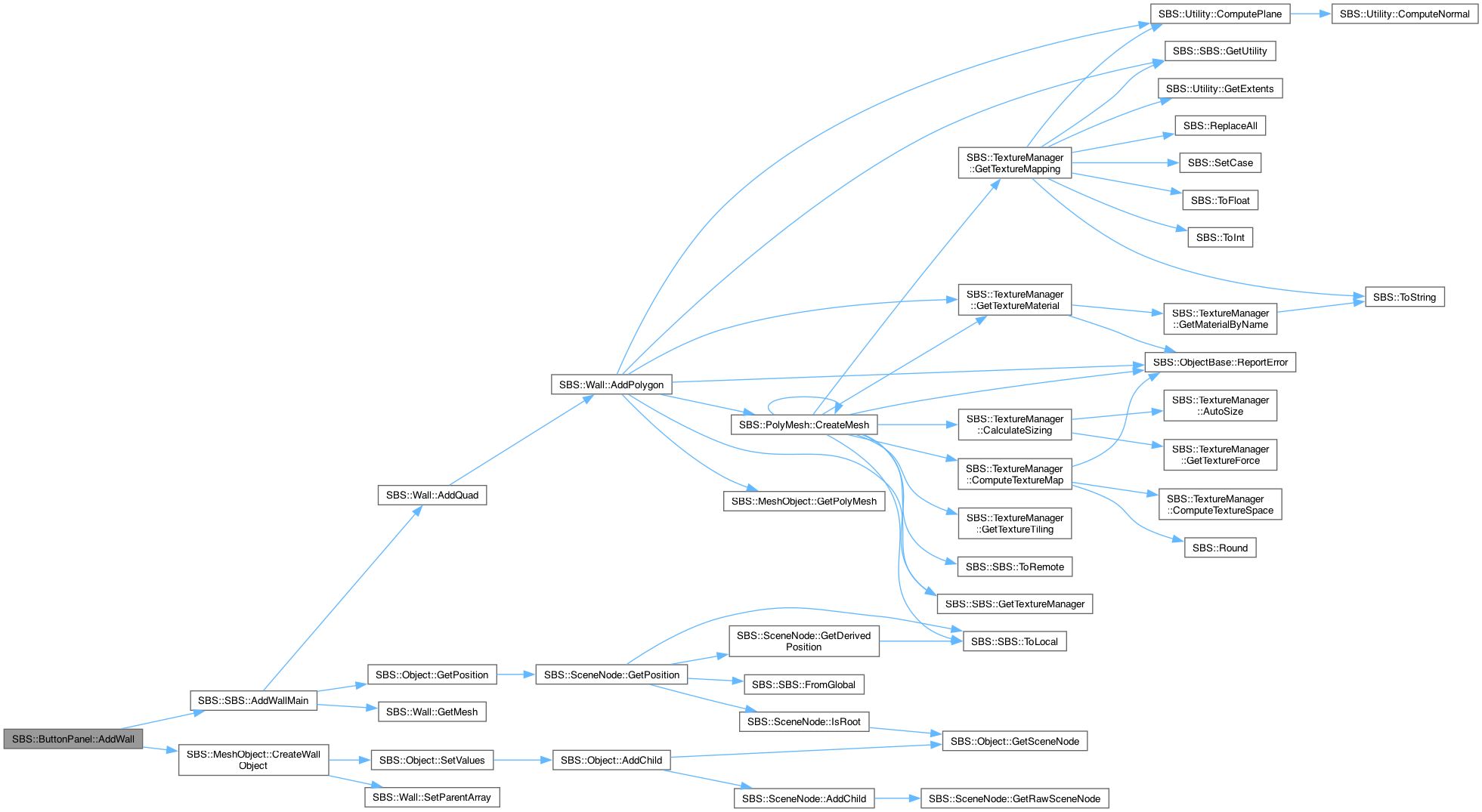

Here is the call graph for this function:

◆ ChangeAllLights()

void SBS::ButtonPanel::ChangeAllLights ( bool value )

Definition at line 292 of file buttonpanel.cpp.

References controls.

◆ ChangeLight()

void SBS::ButtonPanel::ChangeLight	(	int	floor,
		bool	value )

Definition at line 282 of file buttonpanel.cpp.

References controls.

◆ Enabled()

void SBS::ButtonPanel::Enabled ( bool value )

virtual

Reimplemented from SBS::Object.

Definition at line 253 of file buttonpanel.cpp.

References controls, SBS::MeshObject::Enabled(), is_enabled, and mesh.

Referenced by SBS::CallStation::Enabled().

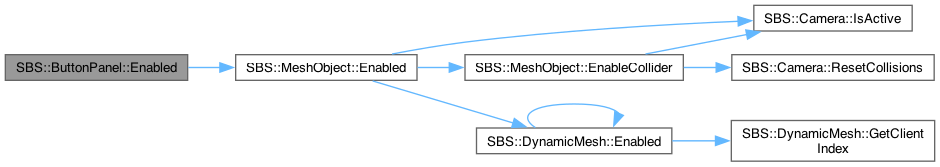

Here is the call graph for this function:

◆ GetControl() [1/2]

Control * SBS::ButtonPanel::GetControl ( const std::string & name )

Definition at line 317 of file buttonpanel.cpp.

References controls.

◆ GetControl() [2/2]

Control * SBS::ButtonPanel::GetControl ( int index )

Definition at line 309 of file buttonpanel.cpp.

References controls.

Referenced by SBS::CallStation::GetDownControl(), GetFloorButton(), and SBS::CallStation::GetUpControl().

◆ GetControlCount()

int SBS::ButtonPanel::GetControlCount ( )

Definition at line 345 of file buttonpanel.cpp.

References controls.

◆ GetFloorButton()

Control * SBS::ButtonPanel::GetFloorButton ( int floor )

Definition at line 302 of file buttonpanel.cpp.

References GetControl(), and SBS::ToString().

Here is the call graph for this function:

◆ IsEnabled()

bool SBS::ButtonPanel::IsEnabled ( )

virtual

Reimplemented from SBS::Object.

Definition at line 269 of file buttonpanel.cpp.

References is_enabled.

◆ RemoveControl()

void SBS::ButtonPanel::RemoveControl ( Control * control )

Definition at line 332 of file buttonpanel.cpp.

References controls.

◆ SetControls()

void SBS::ButtonPanel::SetControls ( const std::string & action_name )

Definition at line 350 of file buttonpanel.cpp.

References controls, and SBS::Control::FindActionPosition().

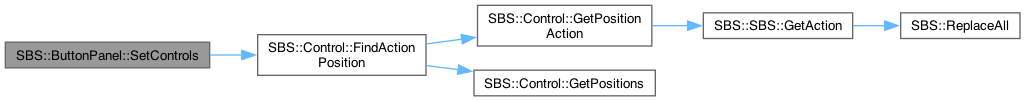

Here is the call graph for this function:

Member Data Documentation

◆ action_list

std::vector<Action*> SBS::ButtonPanel::action_list

private

Definition at line 67 of file buttonpanel.h.

Referenced by AddControl(), and ~ButtonPanel().

◆ ButtonHeight

Real SBS::ButtonPanel::ButtonHeight

Definition at line 38 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ ButtonWidth

Real SBS::ButtonPanel::ButtonWidth

Definition at line 37 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ Columns

int SBS::ButtonPanel::Columns

Definition at line 42 of file buttonpanel.h.

Referenced by ButtonPanel().

◆ controls

std::vector<Control*> SBS::ButtonPanel::controls

private

Definition at line 66 of file buttonpanel.h.

Referenced by AddControl(), ChangeAllLights(), ChangeLight(), Enabled(), GetControl(), GetControl(), GetControlCount(), RemoveControl(), SetControls(), and ~ButtonPanel().

◆ Direction

std::string SBS::ButtonPanel::Direction

Definition at line 34 of file buttonpanel.h.

Referenced by AddControl(), ButtonPanel(), and SBS::CallStation::ReportElevator().

◆ Height

Real SBS::ButtonPanel::Height

Definition at line 36 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ Index

int SBS::ButtonPanel::Index

Definition at line 33 of file buttonpanel.h.

Referenced by ButtonPanel().

◆ is_enabled

bool SBS::ButtonPanel::is_enabled

Definition at line 43 of file buttonpanel.h.

Referenced by ButtonPanel(), Enabled(), and IsEnabled().

◆ mesh

MeshObject* SBS::ButtonPanel::mesh

private

Definition at line 64 of file buttonpanel.h.

Referenced by AddWall(), ButtonPanel(), Enabled(), and ~ButtonPanel().

◆ off_action

Action* SBS::ButtonPanel::off_action

private

Definition at line 65 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ Rows

int SBS::ButtonPanel::Rows

Definition at line 41 of file buttonpanel.h.

Referenced by ButtonPanel().

◆ SpacingX

Real SBS::ButtonPanel::SpacingX

Definition at line 39 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ SpacingY

Real SBS::ButtonPanel::SpacingY

Definition at line 40 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

◆ Width

Real SBS::ButtonPanel::Width

Definition at line 35 of file buttonpanel.h.

Referenced by AddControl(), and ButtonPanel().

The documentation for this class was generated from the following files:

src/sbs/buttonpanel.h
src/sbs/buttonpanel.cpp
