SBS::Map Class Reference

#include <map.h>

Inheritance diagram for SBS::Map:

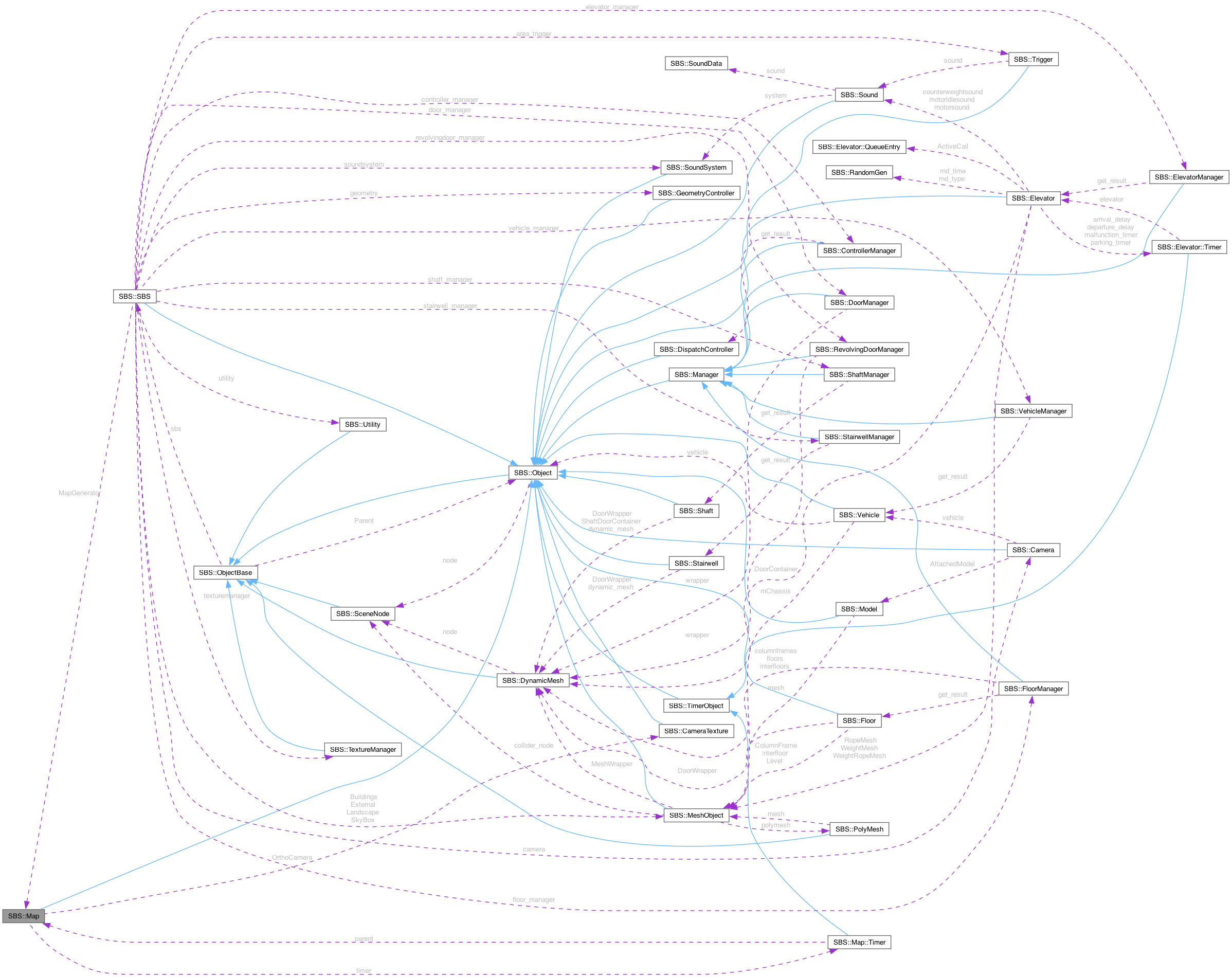

Collaboration diagram for SBS::Map:

Classes
class	Timer

Public Member Functions
	Map (Object *parent, const std::string &name)
	~Map ()
void	Enabled (bool value)
bool	IsEnabled ()
void	GetImage (Ogre::Image &image)
Public Member Functions inherited from SBS::Object
	Object (Object *parent)
virtual	~Object ()
void	SetValues (const std::string &type, const std::string &name, bool is_permanent, bool is_movable=true)
bool	IsPermanent ()
bool	IsMovable ()
const std::string &	GetType ()
int	GetNumber ()
void	AddChild (Object *object)
Object *	GetChild (int index)
int	GetChildrenCount ()
void	RemoveChild (Object *object)
SceneNode *	GetSceneNode ()
void	ShowBoundingBox (bool value)
virtual void	Move (const Vector3 &vector, Real speed=1.0, bool force=false)
virtual void	Move (Real X, Real Y, Real Z, Real speed=1.0, bool force=false)
virtual void	SetPosition (const Vector3 &position, bool relative=false, bool force=false)
virtual void	SetPosition (Real X, Real Y, Real Z, bool relative=false, bool force=false)
virtual void	SetPositionY (Real value, bool force=false)
virtual Vector3	GetPosition (bool relative=false)
virtual void	Rotate (const Vector3 &vector, Real speed=1.0)
virtual void	Rotate (Real X, Real Y, Real Z, Real speed=1.0)
virtual void	SetRotation (const Vector3 &rotation)
virtual void	SetRotation (Real X, Real Y, Real Z)
virtual Vector3	GetRotation ()
Quaternion	GetOrientation (bool relative=false)
void	SetOrientation (const Quaternion &q, bool relative=false)
virtual void	OnMove (bool parent)
virtual void	OnRotate (bool parent)
virtual void	OnClick (Vector3 &position, bool shift, bool ctrl, bool alt, bool right)
virtual void	OnUnclick (bool right)
virtual void	OnHit ()
void	NotifyMove (bool parent=false)
void	NotifyRotate (bool parent=false)
virtual void	ResetState ()
void	ChangeParent (Object *new_parent)
bool	IsGlobal ()
void	Init (bool children=true)
virtual void	OnInit ()
virtual void	Loop ()
void	RegisterLoop (Object *object)
void	UnregisterLoop (Object *object)
std::string	GetNameBase ()
template<typename T >
bool	IsType ()
template<typename T >
T *	ConvertTo ()
Public Member Functions inherited from SBS::ObjectBase
	ObjectBase (Object *parent)
virtual	~ObjectBase ()
Object *	GetParent ()
SBS *	GetRoot ()
void	SetName (const std::string &name)
const std::string &	GetName ()
std::string	GetNameBase ()
virtual void	Report (const std::string &message)
virtual bool	ReportError (const std::string &message)

Private Attributes
bool	enabled
CameraTexture *	OrthoCamera
Timer *	timer

Additional Inherited Members
Public Attributes inherited from SBS::Object
std::string	command
std::string	command_processed
std::string	context
int	linenum
std::string	includefile
bool	parent_deleting
Protected Member Functions inherited from SBS::Object
void	EnableLoop (bool value)
void	LoopChildren ()
bool	SelfDestruct ()
Protected Attributes inherited from SBS::ObjectBase
SBS *	sbs

Detailed Description

Definition at line 29 of file map.h.

Constructor & Destructor Documentation

Map()

SBS::Map::Map	(	Object *	parent,
		const std::string &	name )

Definition at line 45 of file map.cpp.

References enabled, SBS::CameraTexture::EnableOrthographic(), OrthoCamera, SBS::Object::SetValues(), and timer.

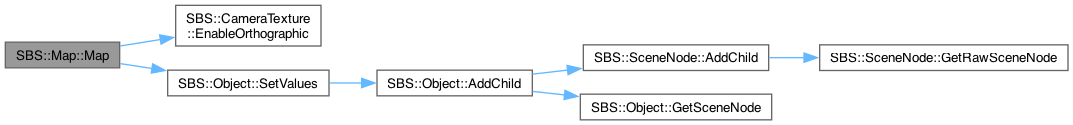

Here is the call graph for this function:

~Map()

SBS::Map::~Map

(

)

Definition at line 65 of file map.cpp.

References OrthoCamera.

Member Function Documentation

Enabled()

void SBS::Map::Enabled ( bool value )

virtual

Reimplemented from SBS::Object.

Definition at line 72 of file map.cpp.

References SBS::CameraTexture::Enabled(), enabled, and OrthoCamera.

Here is the call graph for this function:

GetImage()

void SBS::Map::GetImage

(

Ogre::Image &


)

Definition at line 102 of file map.cpp.

References SBS::CameraTexture::GetImage(), and OrthoCamera.

Here is the call graph for this function:

IsEnabled()

bool SBS::Map::IsEnabled ( )

virtual

Reimplemented from SBS::Object.

Definition at line 83 of file map.cpp.

References enabled.

Member Data Documentation

enabled

bool SBS::Map::enabled

private

Definition at line 42 of file map.h.

Referenced by Enabled(), IsEnabled(), and Map().

OrthoCamera

CameraTexture* SBS::Map::OrthoCamera

private

Definition at line 44 of file map.h.

Referenced by Enabled(), GetImage(), Map(), and ~Map().

timer

Timer* SBS::Map::timer

private

Definition at line 49 of file map.h.

Referenced by Map().

---

The documentation for this class was generated from the following files:

• src/sbs/map.h
• src/sbs/map.cpp
