SBS::TimerObject Class Reference

#include <timer.h>

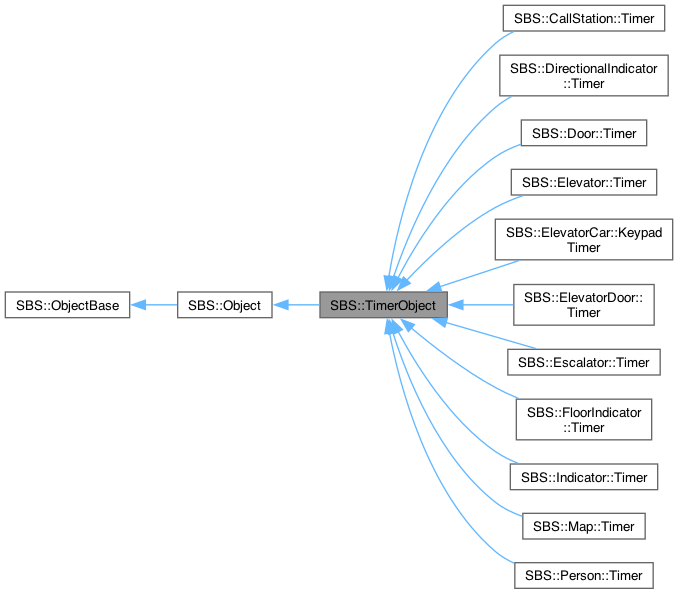

Inheritance diagram for SBS::TimerObject:

Collaboration diagram for SBS::TimerObject:

Public Member Functions
	TimerObject (Object *parent, const std::string &name)
virtual	~TimerObject ()
void	Start (int milliseconds=-1, bool oneshot=false)
void	Stop ()
virtual void	Notify ()
bool	IsRunning ()
void	Loop ()
unsigned long	GetCurrentTime ()
void	Report (const std::string &message)
Public Member Functions inherited from SBS::Object
	Object (Object *parent)
virtual	~Object ()
void	SetValues (const std::string &type, const std::string &name, bool is_permanent, bool is_movable=true)
bool	IsPermanent ()
bool	IsMovable ()
const std::string &	GetType ()
int	GetNumber ()
void	AddChild (Object *object)
Object *	GetChild (int index)
int	GetChildrenCount ()
void	RemoveChild (Object *object)
SceneNode *	GetSceneNode ()
void	ShowBoundingBox (bool value)
virtual void	Move (const Vector3 &vector, Real speed=1.0, bool force=false)
virtual void	Move (Real X, Real Y, Real Z, Real speed=1.0, bool force=false)
virtual void	SetPosition (const Vector3 &position, bool relative=false, bool force=false)
virtual void	SetPosition (Real X, Real Y, Real Z, bool relative=false, bool force=false)
virtual void	SetPositionY (Real value, bool force=false)
virtual Vector3	GetPosition (bool relative=false)
virtual void	Rotate (const Vector3 &vector, Real speed=1.0)
virtual void	Rotate (Real X, Real Y, Real Z, Real speed=1.0)
virtual void	SetRotation (const Vector3 &rotation)
virtual void	SetRotation (Real X, Real Y, Real Z)
virtual Vector3	GetRotation ()
Quaternion	GetOrientation (bool relative=false)
void	SetOrientation (const Quaternion &q, bool relative=false)
virtual void	OnMove (bool parent)
virtual void	OnRotate (bool parent)
virtual void	OnClick (Vector3 &position, bool shift, bool ctrl, bool alt, bool right)
virtual void	OnUnclick (bool right)
virtual void	OnHit ()
void	NotifyMove (bool parent=false)
void	NotifyRotate (bool parent=false)
virtual void	ResetState ()
void	ChangeParent (Object *new_parent)
bool	IsGlobal ()
void	Init (bool children=true)
virtual void	OnInit ()
void	RegisterLoop (Object *object)
void	UnregisterLoop (Object *object)
virtual void	Enabled (bool value)
virtual bool	IsEnabled ()
std::string	GetNameBase ()
template<typename T >
bool	IsType ()
template<typename T >
T *	ConvertTo ()
Public Member Functions inherited from SBS::ObjectBase
	ObjectBase (Object *parent)
virtual	~ObjectBase ()
Object *	GetParent ()
SBS *	GetRoot ()
void	SetName (const std::string &name)
const std::string &	GetName ()
std::string	GetNameBase ()
virtual bool	ReportError (const std::string &message)

Private Attributes
int	Interval
bool	OneShot
unsigned long	CurrentTime
unsigned long	LastHit
unsigned long	StartTime
bool	Running

Additional Inherited Members
Public Attributes inherited from SBS::Object
std::string	command
std::string	command_processed
std::string	context
int	linenum
std::string	includefile
bool	parent_deleting
Protected Member Functions inherited from SBS::Object
void	EnableLoop (bool value)
void	LoopChildren ()
bool	SelfDestruct ()
Protected Attributes inherited from SBS::ObjectBase
SBS *	sbs

Detailed Description

Definition at line 29 of file timer.h.

Constructor & Destructor Documentation

TimerObject()

SBS::TimerObject::TimerObject	(	Object *	parent,
		const std::string &	name )

Definition at line 30 of file timer.cpp.

References CurrentTime, Interval, LastHit, OneShot, Running, SBS::Object::SetValues(), and StartTime.

Here is the call graph for this function:

~TimerObject()

SBS::TimerObject::~TimerObject ( )

virtual

Definition at line 43 of file timer.cpp.

References Running, and Stop().

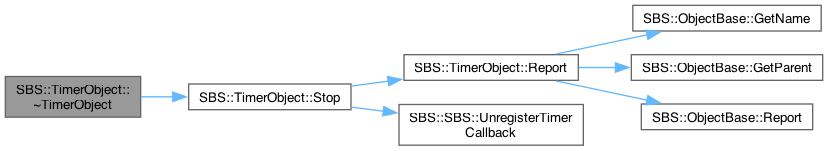

Here is the call graph for this function:

Member Function Documentation

GetCurrentTime()

unsigned long SBS::TimerObject::GetCurrentTime

(

)

Definition at line 99 of file timer.cpp.

References CurrentTime.

IsRunning()

bool SBS::TimerObject::IsRunning

(

)

Definition at line 74 of file timer.cpp.

References Running.

Referenced by SBS::ElevatorDoor::Hold(), SBS::Person::IsRandomActivityEnabled(), SBS::Elevator::Loop(), SBS::Elevator::MoveElevatorToFloor(), SBS::ElevatorDoor::ResetNudgeTimer(), and SBS::ElevatorDoor::TimerIsRunning().

Loop()

void SBS::TimerObject::Loop ( )

virtual

Reimplemented from SBS::Object.

Definition at line 79 of file timer.cpp.

References CurrentTime, SBS::SBS::GetCurrentTime(), Interval, LastHit, Notify(), OneShot, Report(), Running, SBS::ObjectBase::sbs, StartTime, Stop(), and SBS::SBS::Verbose.

Here is the call graph for this function:

Notify()

virtual void SBS::TimerObject::Notify ( )

inlinevirtual

Reimplemented in SBS::CallStation::Timer, SBS::DirectionalIndicator::Timer, SBS::Door::Timer, SBS::Elevator::Timer, SBS::ElevatorCar::KeypadTimer, SBS::ElevatorDoor::Timer, SBS::Escalator::Timer, SBS::FloorIndicator::Timer, SBS::Indicator::Timer, SBS::Map::Timer, and SBS::Person::Timer.

Definition at line 37 of file timer.h.

Referenced by Loop().

Report()

void SBS::TimerObject::Report ( const std::string & message )

virtual

Reimplemented from SBS::ObjectBase.

Definition at line 104 of file timer.cpp.

References SBS::ObjectBase::GetName(), SBS::ObjectBase::GetParent(), and SBS::ObjectBase::Report().

Referenced by Loop(), Start(), and Stop().

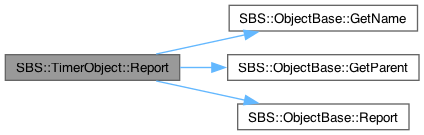

Here is the call graph for this function:

Start()

void SBS::TimerObject::Start	(	int	milliseconds = -1,
		bool	oneshot = false )

Definition at line 49 of file timer.cpp.

References SBS::SBS::GetCurrentTime(), Interval, LastHit, OneShot, SBS::SBS::RegisterTimerCallback(), Report(), Running, SBS::ObjectBase::sbs, StartTime, and SBS::SBS::Verbose.

Referenced by SBS::Door::AutoClose(), SBS::DirectionalIndicator::DownLight(), SBS::Elevator::EnableMalfunctions(), SBS::Escalator::EnableMalfunctions(), SBS::Person::EnableRandomActivity(), SBS::FloorIndicator::Flash(), SBS::CallStation::Input(), SBS::ElevatorCar::Input(), SBS::Elevator::Loop(), SBS::Elevator::MoveElevatorToFloor(), SBS::ElevatorDoor::Reset(), SBS::ElevatorDoor::ResetNudgeTimer(), SBS::DirectionalIndicator::SetLights(), SBS::Indicator::Update(), and SBS::DirectionalIndicator::UpLight().

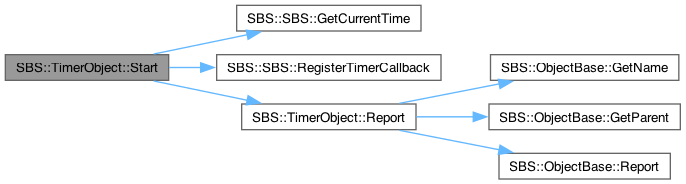

Here is the call graph for this function:

Stop()

void SBS::TimerObject::Stop

(

)

Definition at line 62 of file timer.cpp.

References Report(), Running, SBS::ObjectBase::sbs, SBS::SBS::UnregisterTimerCallback(), and SBS::SBS::Verbose.

Referenced by SBS::Door::AutoClose(), SBS::DirectionalIndicator::DownLight(), SBS::Elevator::EnableMalfunctions(), SBS::Escalator::EnableMalfunctions(), SBS::Person::EnableRandomActivity(), SBS::FloorIndicator::Flash(), SBS::ElevatorDoor::Hold(), SBS::CallStation::Input(), SBS::ElevatorCar::Input(), Loop(), SBS::ElevatorDoor::MoveDoors(), SBS::Elevator::MoveElevatorToFloor(), SBS::DirectionalIndicator::Timer::Notify(), SBS::Elevator::Timer::Notify(), SBS::ElevatorDoor::ResetNudgeTimer(), SBS::ElevatorDoor::ResetState(), SBS::DirectionalIndicator::UpLight(), and ~TimerObject().

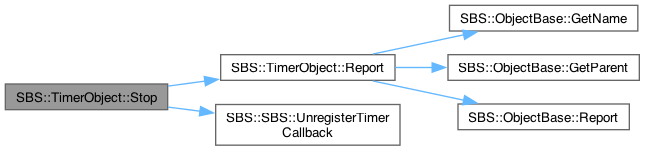

Here is the call graph for this function:

Member Data Documentation

CurrentTime

unsigned long SBS::TimerObject::CurrentTime

private

Definition at line 46 of file timer.h.

Referenced by GetCurrentTime(), Loop(), and TimerObject().

Interval

int SBS::TimerObject::Interval

private

Definition at line 44 of file timer.h.

Referenced by Loop(), Start(), and TimerObject().

LastHit

unsigned long SBS::TimerObject::LastHit

private

Definition at line 47 of file timer.h.

Referenced by Loop(), Start(), and TimerObject().

OneShot

bool SBS::TimerObject::OneShot

private

Definition at line 45 of file timer.h.

Referenced by Loop(), Start(), and TimerObject().

Running

bool SBS::TimerObject::Running

private

Definition at line 49 of file timer.h.

Referenced by IsRunning(), Loop(), Start(), Stop(), TimerObject(), and ~TimerObject().

StartTime

unsigned long SBS::TimerObject::StartTime

private

Definition at line 48 of file timer.h.

Referenced by Loop(), Start(), and TimerObject().

---

The documentation for this class was generated from the following files:

• src/sbs/timer.h
• src/sbs/timer.cpp
