#include <openxr/openxr.h>
#include <DirectXMath.h>
#include <stdexcept>
#include <cmath>

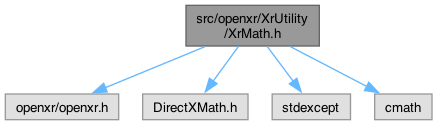

Include dependency graph for XrMath.h:

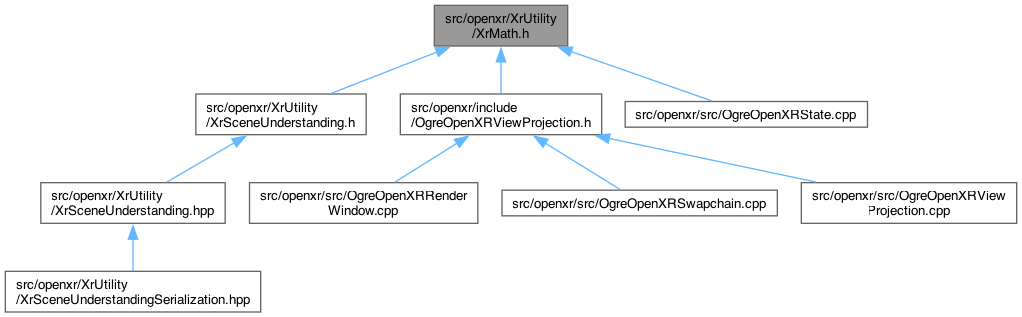

This graph shows which files directly or indirectly include this file:

Classes
struct	xr::math::NearFar

struct	xr::math::ViewProjection

Namespaces
namespace	xr
	The xr::DispatchTable struct contains all available PFN pointers to xr functions including those in all extensions. The application should call dispatchTable.Initialize() once creating a new XrInstance to initialize all function pointers. The application should reset the dispatch table by `= {}` when destroying the instance handle.

namespace	xr::math

namespace	xr::math::Pose

namespace	xr::math::Quaternion

namespace	xr::math::detail

Macros
#define	DEFINE_CAST(X, Y)

#define	DEFINE_CAST(X, Y)

#define	VECTOR2F_OPERATOR(op)

#define	VECTOR2F_OPERATOR(op)

#define	VECTOR2F_OPERATOR(op)

#define	VECTOR3F_OPERATOR(op)

#define	VECTOR3F_OPERATOR(op)

#define	VECTOR3F_OPERATOR(op)

Functions
constexpr XrPosef	xr::math::Pose::Identity ()

constexpr XrPosef	xr::math::Pose::Translation (const XrVector3f &translation)

XrPosef	xr::math::Pose::LookAt (const XrVector3f &origin, const XrVector3f &forward, const XrVector3f &up)

XrPosef	xr::math::Pose::Multiply (const XrPosef &a, const XrPosef &b)

XrPosef	xr::math::Pose::Slerp (const XrPosef &a, const XrPosef &b, float alpha)

XrPosef	xr::math::Pose::Invert (const XrPosef &pose)

constexpr bool	xr::math::Pose::IsPoseValid (const XrSpaceLocation &location)

constexpr bool	xr::math::Pose::IsPoseTracked (const XrSpaceLocation &location)

constexpr bool	xr::math::Pose::IsPoseValid (const XrHandJointLocationEXT &jointLocation)

constexpr bool	xr::math::Pose::IsPoseTracked (const XrHandJointLocationEXT &jointLocation)

constexpr bool	xr::math::Pose::IsPoseValid (const XrViewState &viewState)

constexpr bool	xr::math::Pose::IsPoseTracked (const XrViewState &viewState)

template<typename Quaternion , typename Vector3 >
XrPosef	xr::math::Pose::MakePose (const Quaternion &orientation, const Vector3 &position)

constexpr XrQuaternionf	xr::math::Quaternion::Identity ()

bool	xr::math::Quaternion::IsNormalized (const XrQuaternionf &quaternion)

XrQuaternionf	xr::math::Quaternion::RotationAxisAngle (const XrVector3f &axis, float angleInRadians)

XrQuaternionf	xr::math::Quaternion::RotationRollPitchYaw (const XrVector3f &eulerAnglesInRadians)

XrQuaternionf	xr::math::Quaternion::Slerp (const XrQuaternionf &a, const XrQuaternionf &b, float alpha)

template<typename X , typename Y >
constexpr const X &	xr::math::cast (const Y &value)=delete

DirectX::XMVECTOR XM_CALLCONV	xr::math::LoadXrVector2 (const XrVector2f &vector)

DirectX::XMVECTOR XM_CALLCONV	xr::math::LoadXrVector3 (const XrVector3f &vector)

DirectX::XMVECTOR XM_CALLCONV	xr::math::LoadXrVector4 (const XrVector4f &vector)

DirectX::XMVECTOR XM_CALLCONV	xr::math::LoadXrQuaternion (const XrQuaternionf &quaternion)

DirectX::XMMATRIX XM_CALLCONV	xr::math::LoadXrPose (const XrPosef &rigidTransform)

DirectX::XMMATRIX XM_CALLCONV	xr::math::LoadInvertedXrPose (const XrPosef &rigidTransform)

DirectX::XMVECTOR XM_CALLCONV	xr::math::LoadXrExtent (const XrExtent2Df &extend)

void XM_CALLCONV	xr::math::StoreXrVector2 (XrVector2f *outVec, DirectX::FXMVECTOR inVec)

void XM_CALLCONV	xr::math::StoreXrVector3 (XrVector3f *outVec, DirectX::FXMVECTOR inVec)

void XM_CALLCONV	xr::math::StoreXrVector4 (XrVector4f *outVec, DirectX::FXMVECTOR inVec)

void XM_CALLCONV	xr::math::StoreXrQuaternion (XrQuaternionf *outQuat, DirectX::FXMVECTOR inQuat)

bool XM_CALLCONV	xr::math::StoreXrPose (XrPosef *out, DirectX::FXMMATRIX matrix)

void XM_CALLCONV	xr::math::StoreXrExtent (XrExtent2Df *extend, DirectX::FXMVECTOR inVec)

DirectX::XMMATRIX	xr::math::ComposeProjectionMatrix (const XrFovf &fov, const NearFar &nearFar)

NearFar	xr::math::GetProjectionNearFar (const DirectX::XMFLOAT4X4 &projectionMatrix)

XrFovf	xr::math::DecomposeProjectionMatrix (const DirectX::XMFLOAT4X4 &projectionMatrix)

template<typename X , typename Y >
constexpr const X &	xr::math::detail::implement_math_cast (const Y &value)

template<typename X , typename Y >
constexpr X &	xr::math::detail::implement_math_cast (Y &value)

	xr::math::DEFINE_CAST (XrVector2f, DirectX::XMFLOAT2)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT2, XrVector2f)

	xr::math::DEFINE_CAST (XrVector3f, DirectX::XMFLOAT3)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT3, XrVector3f)

	xr::math::DEFINE_CAST (XrVector4f, DirectX::XMFLOAT4)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT4, XrVector4f)

	xr::math::DEFINE_CAST (XrQuaternionf, DirectX::XMFLOAT4)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT4, XrQuaternionf)

	xr::math::DEFINE_CAST (XrExtent2Di, DirectX::XMINT2)

	xr::math::DEFINE_CAST (DirectX::XMINT2, XrExtent2Di)

	xr::math::DEFINE_CAST (XrExtent2Df, DirectX::XMFLOAT2)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT2, XrExtent2Df)

	xr::math::DEFINE_CAST (XrColor4f, DirectX::XMFLOAT4)

	xr::math::DEFINE_CAST (DirectX::XMFLOAT4, XrColor4f)

	xr::math::VECTOR2F_OPERATOR (+)

	xr::math::VECTOR2F_OPERATOR (-)

VECTOR2F_OPERATOR *	xr::math::VECTOR2F_OPERATOR (/);#define VECTOR2F_OPERATOR(op) \ \ \ VECTOR2F_OPERATOR(+

	xr::math::VECTOR3F_OPERATOR (-)

VECTOR3F_OPERATOR *	xr::math::VECTOR3F_OPERATOR (/);#define VECTOR3F_OPERATOR(op) \ \ \ VECTOR3F_OPERATOR(+

constexpr bool	xr::math::Pose::IsPoseValid (XrSpaceLocationFlags locationFlags)

constexpr bool	xr::math::Pose::IsPoseTracked (XrSpaceLocationFlags locationFlags)

float	xr::math::Quaternion::Length (const XrQuaternionf &quaternion)

XrPosef	xr::math::operator* (const XrPosef &a, const XrPosef &b)

float	xr::math::Dot (const XrVector3f &a, const XrVector3f &b)

float	xr::math::Length (const XrVector3f &v)

XrVector3f	xr::math::Normalize (const XrVector3f &a)

bool	xr::math::IsInfiniteNearPlaneProjectionMatrix (const DirectX::XMFLOAT4X4 &p)

bool	xr::math::IsInfiniteFarPlaneProjectionMatrix (const DirectX::XMFLOAT4X4 &p)

void	xr::math::ValidateProjectionMatrix (const DirectX::XMFLOAT4X4 &p)

template<uint32_t alignment>
constexpr uint32_t	xr::math::AlignTo (uint32_t n)

constexpr uint32_t	xr::math::DivideRoundingUp (uint32_t x, uint32_t y)

Variables
constexpr float	xr::math::QuaternionEpsilon = 0.01f

constexpr float	xr::math::OneOverFloatEpsilon = 1.0f / std::numeric_limits<float>::epsilon()

Macro Definition Documentation

◆ DEFINE_CAST [1/2]

#define DEFINE_CAST	(		X,
			Y )

Value:

    template <>                                       \
    constexpr const X& cast<X, Y>(const Y& value) {   \
        return detail::implement_math_cast<X>(value); \
    }

Definition at line 109 of file XrMath.h.

◆ DEFINE_CAST [2/2]

#define DEFINE_CAST	(		X,
			Y )

Value:

    constexpr const X& cast(const Y& value) {         \
        return detail::implement_math_cast<X>(value); \
    }                                                 \
    constexpr X& cast(Y& value) {                     \
        return detail::implement_math_cast<X>(value); \
    }

Definition at line 109 of file XrMath.h.

◆ VECTOR2F_OPERATOR [1/3]

#define VECTOR2F_OPERATOR ( op )

Value:

    constexpr XrVector2f operator op(const XrVector2f& a, const XrVector2f& b) { \
        return XrVector2f{a.x op b.x, a.y op b.y};                               \
    }

Definition at line 175 of file XrMath.h.

◆ VECTOR2F_OPERATOR [2/3]

#define VECTOR2F_OPERATOR ( op )

Value:

    constexpr XrVector2f operator op(const XrVector2f& a, float s) { \
        return XrVector2f{a.x op s, a.y op s};                       \
    }

Definition at line 175 of file XrMath.h.

◆ VECTOR2F_OPERATOR [3/3]

#define VECTOR2F_OPERATOR ( op )

Value:

    constexpr XrVector2f operator op(float s, const XrVector2f& a) { \
        return XrVector2f{s op a.x, s op a.y};                       \
    }

Definition at line 175 of file XrMath.h.

◆ VECTOR3F_OPERATOR [1/3]

#define VECTOR3F_OPERATOR ( op )

Value:

    constexpr XrVector3f operator op(const XrVector3f& a, const XrVector3f& b) { \
        return XrVector3f{a.x op b.x, a.y op b.y, a.z op b.z};                   \
    }

◆ VECTOR3F_OPERATOR [2/3]

#define VECTOR3F_OPERATOR ( op )

Value:

    constexpr XrVector3f operator op(const XrVector3f& a, float s) { \
        return XrVector3f{a.x op s, a.y op s, a.z op s};             \
    }

◆ VECTOR3F_OPERATOR [3/3]

#define VECTOR3F_OPERATOR ( op )

Value:

    constexpr XrVector3f operator op(float s, const XrVector3f& a) { \
        return XrVector3f{s op a.x, s op a.y, s op a.z};             \
    }
